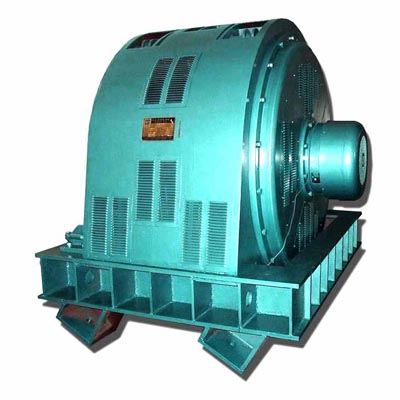

Xi’an Taifu Simo TK Series Large Three-Phase Synchronous Motors for Compressors
Application
The Xi’an Taifu Simo TK series large three-phase synchronous motors are designed specifically for driving reciprocating air compressors. These motors are suitable for indoor environments where the ambient temperature is below 40°C, with minimal dust and no presence of vapor, corrosive gases like acids or alkalis, or explosive gases.
Protection and Cooling
The TK series motors have a protection class of IP00 and use an IC01 cooling method. Other protection classes and cooling methods can be customized in consultation with the user. The structure and installation type of the motor can be adapted to meet the compressor’s requirements, and it can be manufactured in either IM7311 or IM5710 configurations, with other options available upon request.
Specifications
The rated voltage for the TK series motors is 6000 volts, but they can also be made with a rated voltage of 10000 volts. The permissible voltage deviation range is ±5%, with a rated frequency of 50Hz and a rated power factor of 0.9 (leading). The rotation direction of the motor, viewed from the slip ring end, is clockwise. If needed, the rotation direction can be changed, but the fan blades should be adjusted accordingly.
Power and Speed Ratings
The TK series motors are available in a wide range of power ratings, including: 250, 320, (350), 400, 500, (550), 630, 800, 1000, (1120), 1250, (1400), 1600, (1800), 2000, (2200), 2500, (2800), 3200, (3600), 4000 kW, among others. The rated speed levels include: 500, 428, 375, 333, 300, 250/rpm, etc.
Compliance and Standards
The Xi’an Taifu Simo TK series large three-phase synchronous motors comply with the JB/T8667.1-1997 standard for large TK series three-phase synchronous motors and GB 755 standards for basic technical requirements of rotating electrical machines.
Excitation System
The excitation system of the TK series synchronous motors uses a static thyristor excitation device. These motors are designed for full-voltage direct starting; however, if the power grid capacity does not permit full-voltage starting, they can also start with reduced voltage.

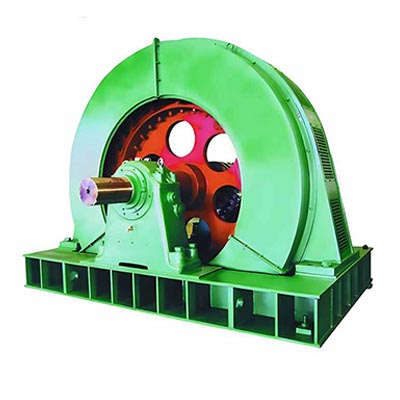

Structure Overview
The TK series large AC three-phase synchronous motors for air compressors feature a steel plate welded frame with a base. The protection class is IP00, and the cooling method is IC01 with self-cooling via a fan. It can also be configured with IC37 duct ventilation. Installation types include IM7311 or IM5710, the latter without a shaft and pedestal bearings. The duty type is S1, with a Y-connected stator winding and insulation class F (assessed as class B).
The stator is constructed from 0.5mm thick low-loss silicon steel sheet laminations, pressed into fan-shaped segments with directional ventilation slots. The stator winding uses pre-formed double-stack short-pitch coils, with insulation rated at class F.
Quality Assurance
Xi’an Simo Motor Co., Ltd. is a leading enterprise in China, specializing in the production of medium and large-sized motors, covering high and low voltage, AC and DC motors. The company integrates motor design, manufacturing, electrical control, mechanical processing, mold making, casting, and transportation into a systematic power system provider. It has consistently ranked among the top in the national motor industry in terms of production and sales scale and has maintained rapid growth for seven consecutive years. In 2004, it was listed among the top 500 enterprises in China’s machinery industry and ranked 58th in China’s electrical industry in 2005. In 1995, it was the first in the industry to obtain ISO9001-1994 quality system certification, and in August 2005, it passed the ISO9001-2000 quality system certification by the China Quality Certification Center (CQC). In May 2006, it passed the ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications, as well as certifications for Europe’s CE, America’s UL, and China’s CCC. The company is a AAA-grade quality enterprise, and its leading products have won several honors, including “National, Provincial, and Municipal Famous Brand Products” and “Xi’an City Exempt from Inspection Products.”
To enhance the quality of all kinds of electromechanical products and strengthen pre-sales and after-sales service, ensuring customer satisfaction, Simo Motors strictly adheres to the “Quality Assurance Statement” issued by eight units of the Machine Tool and Tool Industry Research Institute of the Ministry of Machinery Industry. The company conscientiously implements all the clauses in the statement and strictly follows the various rules and regulations of the ISO9001:2000 quality management system, ensuring:
- Strict adherence to relevant national standards and contract technical requirements in manufacturing and inspecting products, with no substandard products leaving the factory.
- After the completion of the final assembly and on-line testing of the finished products, the assembly personnel must run the motor for 72 hours before it is submitted for inspection, ensuring that all testing standards are met to eliminate early failures and improve product reliability.
- Under normal sales conditions, the above-mentioned finished products will be delivered on time. Functional components will be supplied within three months, with early delivery possible in special cases. If delays occur, compensation will be implemented according to the “97 New Measures” for quality improvement.
- If any quality issues arise during the use of the product, Simo Motors guarantees a response within 24 hours after receiving customer notification. On-site service will be initiated within 48 hours, and repair personnel will not leave until the fault is resolved.
- The product will leave the factory with complete technical documentation. For any quality-related issues, the company will provide repair, replacement, or refund services as needed.
- Simo Motor products come with a lifetime warranty at cost after purchase.
Ordering Information
When placing an order for the Xi’an Taifu Simo TK series large three-phase synchronous motors for compressors, users should note the following requirements:
- Please consult the product catalog to determine the required model specifications. Whenever possible, select standard specification products listed in the catalog. The order contract should specify the motor model, power, speed regulation, voltage, frequency, noise level, and installation type.
- If there are special requirements, such as double shaft extension, opposite position of the terminal box, reverse shaft rotation, tropical or outdoor corrosion-resistant types, or other customizations, these should be clearly stated in the contract and communicated with the factory in advance.
