Xi’an Taifu Simo YRKK Series High-Voltage Wound Rotor Three-Phase Asynchronous Motor Model Explanation
Taking the Simo motor model YKK3551-4 as an example: YRKK indicates a wound rotor asynchronous motor with an enclosed air-to-air cooler; “3551” represents a frame center height of 355mm and core length of 1 unit; “4” represents the number of poles.

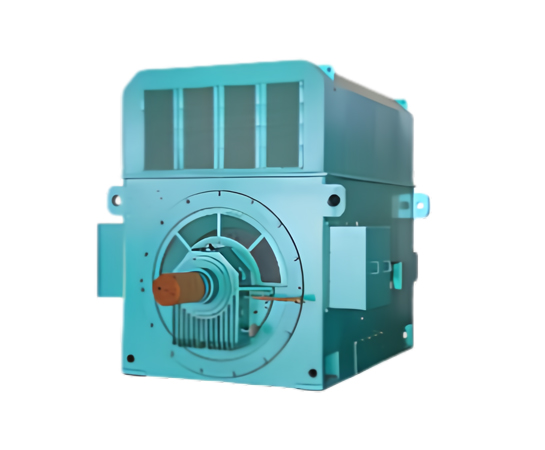

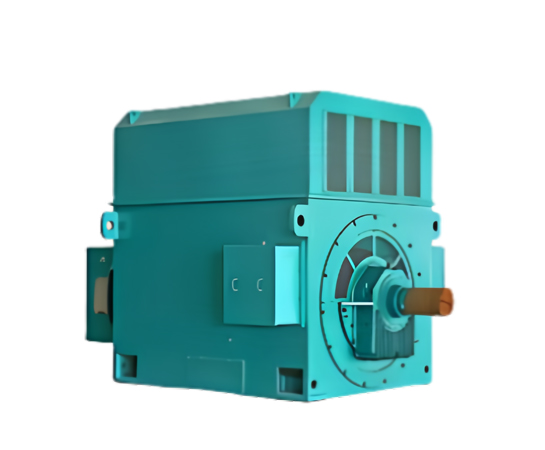

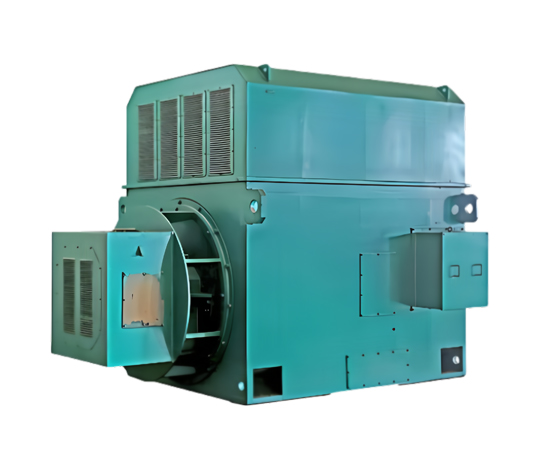

Overview of the Xi’an Taifu Simo YRKK Series High-Voltage Wound Rotor Three-Phase Asynchronous Motor
The YRKK series 6KV and 10KV wound rotor three-phase asynchronous motors are the latest products developed in China during the 1980s, with power levels and installation dimensions conforming to IEC (International Electrotechnical Commission) standards.
The YRKK series motors are characterized by high efficiency, energy savings, low noise, minimal vibration, light weight, reliable performance, and ease of installation and maintenance.
The Xi’an Taifu Simo YKK series (H355-1000) high-voltage three-phase asynchronous motor can provide high starting torque with a relatively small starting current. It is particularly suitable for situations where the feeder line capacity is insufficient to start squirrel-cage rotor motors, where the starting time is longer, where starting occurs frequently, and where minor speed adjustments are required. Typical applications include driving winches, rolling mills, wire drawing machines, etc.
The YRKK series motors adopt an F-class insulation structure. The bearing structure is designed according to IP54 standards, with grease lubrication that allows for oil addition and discharge without stopping the motor.
The protection level of the YRKK series motors is IP44 or IP54 (as per GB4942.1), the cooling method is IC611 (as per GB/T1993), and the structure and installation type is IMB3 (as per GB997). The motor’s rating is based on a continuous duty (S1) as the reference standard. The rated frequency is 50Hz, and the rated voltage is 6KV or 10KV. Other voltage levels or special requirements can be arranged with the manufacturer at the time of order.
Quality Assurance of Xi’an Simo Motor
Xi’an Simo Motor (Group) Co., Ltd. is a large-scale enterprise specializing in the production of medium and large-sized, high- and low-voltage, AC and DC motors. It is a systematic power system provider integrating motor design and manufacturing, electrical control, mechanical processing, mold making, casting, and transportation into automated and complete engineering solutions. The company ranks among the top in the national motor industry in terms of production and sales scale and has maintained rapid growth for seven consecutive years. In 2004, it was listed among the top 500 Chinese machinery companies, and in 2005, it ranked 58th in the Chinese electrical industry. In 1995, it was the first in the industry to obtain ISO9001-1994 quality system certification, and in August 2005, it passed the ISO9001-2000 quality system certification by the China Quality Certification Center (CQC). In May 2006, it passed the ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications, as well as the European “CE,” American “UL,” and national mandatory “CCC” certifications, making it an AAA-rated enterprise in terms of quality and reputation. Its leading products have successively won honors such as “National, Provincial, and Municipal Famous Brand Products” and “Xi’an Exempted Products” and have been recognized as “China’s Light of Famous Brand Products.”
To improve the quality of various electromechanical products and strengthen pre-sales and after-sales services to ensure customer satisfaction, Simo Motor strictly adheres to the “Quality Assurance Statement” of the eight scientific research and design institutes in the machine tool industry under the Ministry of Machinery Industry and conscientiously implements all the terms in the statement. It strictly follows the rules and regulations of the ISO9001:2000 quality management system, ensuring the following:
- Strictly comply with relevant national standards, and manufacture and inspect products in accordance with standard contract technical requirements. Products that do not meet these standards will not leave the factory.
- After final assembly and online debugging of all types of finished products, assembly personnel will conduct a 72-hour operation test before submitting the products for inspection. The products will undergo a rigorous test and reliability test according to relevant standards to improve product reliability and eliminate early failures.
- Under normal sales conditions, the above products will be delivered on time. Functional components are guaranteed to be delivered within three months, with the possibility of earlier delivery in special circumstances. In the event of a delay, compensation will be implemented according to the “97 New Measures” for quality improvement.
- If customers encounter quality issues during product use, Simo Motor guarantees a response within 24 hours of receiving customer notification. If on-site service is required, technicians will arrive within 48 hours and will not leave until the issue is resolved.
- The products will be delivered with complete technical documentation. If the product quality issue falls under the warranty, it will be repaired, returned, or replaced as needed.
- Simo Motor products are covered by a lifetime cost-based warranty from the date of sale.
Ordering Information for the Xi’an Taifu Simo YRKK Series High-Voltage Wound Rotor Three-Phase Asynchronous Motor
The default technical parameters for the Xi’an Taifu Simo YKK series (H355-1000) high-voltage three-phase asynchronous motor are as follows:
- Motor model: YRKK3551-4
- Installation method: IMB3
- Rated power: 185KW
- Protection level: IP44 or IP54
- Rated voltage: 6KV
- Cooling method: IC611
- Rated frequency: 50Hz
- Insulation grade: F-class
- Synchronous speed: 1500r/min
- Environmental temperature: 40°C at an altitude of 1 km
For special requirements, such as double-shaft extension, reversed terminal box position, reverse shaft rotation, tropicalization or outdoor corrosion protection, or other conditions, these must be clearly specified in the contract and discussed with our factory in advance.
Before placing an order, please refer to the product catalog to determine the model specifications and other details required. Whenever possible, select standard specifications listed in the catalog. Please specify the motor model, power, speed control, voltage, frequency, noise, and installation type in the order contract. If the noise level is not specified, the product will be supplied according to level 2 noise standards.
