Xi’an Taifu Simo YKS Series High-Voltage Three-Phase Asynchronous Motor Model Explanation
Taking the YKS3551-4 model as an example: “YKS” indicates a closed cage rotor asynchronous motor with an air-to-water cooler; “3551” signifies a frame center height of 355mm and a core length of 1 unit; “4” represents the number of poles.

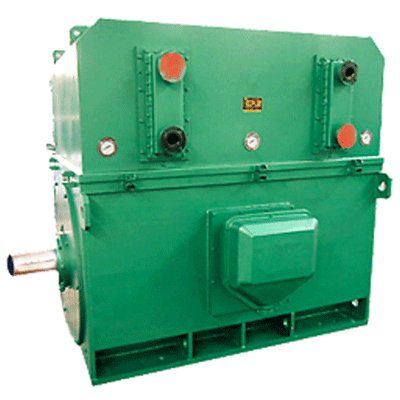

Overview of Xi’an Taifu Simo YKS Series High-Voltage Three-Phase Asynchronous Motor
The YKS series (H355~1000) 6KV and 10KV high-voltage three-phase asynchronous motors are cage rotor asynchronous motors. The protection grade of this series of motors is IP44 or IP54, and the cooling method is ICW81A.
The YKS series motors offer several advantages, including high efficiency, energy savings, low noise, low vibration, light weight, reliable performance, and easy installation and maintenance.
Xi’an Taifu Simo YKS series high-voltage three-phase asynchronous motors can be used to drive various types of machinery, such as fans, compressors, pumps, crushers, cutting machines, and other equipment. They are also suitable for use as prime movers in coal mines, the machinery industry, power plants, and various other industrial and mining enterprises.
The structure and installation type of the YKS series motors are IMB3, and the rating is based on continuous operation mode (S1). The motor’s rated frequency is 50Hz, and the rated voltage is 6KV or 10KV. Other voltage levels or special requirements can be discussed with the user at the time of ordering.
When viewed from the shaft extension end, a 2-pole motor rotates clockwise. If counterclockwise rotation is required, this must be specified at the time of ordering.
Xi’an Simo Motor Quality Assurance
Simo Motor (Group) Co., Ltd. is a large-scale enterprise specializing in the production of medium and large-sized high and low voltage AC and DC motors. The company integrates motor design and manufacturing, electrical control, mechanical processing, mold making, casting, and transportation into a complete system, making it a comprehensive power system provider. Simo Motor ranks among the top in China’s motor industry in terms of production and sales scale and has maintained rapid growth for seven consecutive years. The company was listed among the top 500 in the Chinese machinery industry in 2004 and ranked 58th in the Chinese electrical industry in 2005. It was the first in the industry to obtain ISO9001-1994 quality system certification in 1995, and in August 2005, it passed ISO9001-2000 quality system certification by the China Quality Certification Center (CQC). In May 2006, it obtained ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications, as well as European “CE,” American “UL,” and national compulsory “CCC” certifications. The company has earned AAA-level quality credit. The leading products have successively won honors such as “Ministry, Province, and City Famous Brand Products” and “Xi’an Exempt Products,” as well as the title of “China Light of National Brands.”
To enhance the quality of various electromechanical products and improve pre-sales and after-sales services, ensuring customer satisfaction, Simo Motor strictly follows the “Quality Assurance Statement” issued by eight units of the Machine Tool and Tool Industry Research and Design Institute of the Ministry of Machinery Industry. It conscientiously implements the provisions in the statement and rigorously adheres to the regulations of the ISO9001:2000 quality management system to ensure the following:
- Strict implementation of relevant national standards, manufacturing, and inspection of products according to standard contract technical requirements, ensuring no unqualified products leave the factory.
- After the completion of product assembly and on-line debugging, the assembly personnel will conduct a 72-hour operation test before the final inspection. Rigorous type tests and reliability tests are performed to enhance the reliability of new products and eliminate early failures.
- Under normal sales conditions, the above-mentioned products will be delivered on time. Functional components are guaranteed to be delivered within three months, and in special cases, delivery can be expedited. In case of delays, compensation will be implemented according to the “Ninety-Seven” new measures for quality improvement.
- If customers encounter quality problems during product use, the company guarantees a response within 24 hours of receiving the customer’s notification. If on-site service is required, it will be initiated within 48 hours, and maintenance personnel will not leave until the fault is resolved.
- The technical documentation for the products is complete upon delivery. All products with quality issues are covered under a three-pack warranty (repair, replacement, or return). If repairs cannot restore the product to factory standards, the product will be replaced or refunded.
- Once sold, Simo Motor products are covered under a lifetime cost-based warranty.
Ordering Information for Taifu Simo YKS Series High-Voltage Three-Phase Asynchronous Motor (Requirements to be specified by the user when ordering)
- Motor Model (YKS3551-4)
- Installation Method (IMB3)
- Rated Power (220kW)
- Protection Grade (IP23)
- Rated Voltage (6000V)
- Cooling Method (IC01)
- Rated Frequency (50Hz)
- Insulation Grade (F Class)
- Synchronous Speed (1500r/min)
- Environmental Conditions (Altitude 1000m, Ambient Temperature 40°C)
Note: Belt drive is prohibited for 2-pole and 4-pole motors. If belt drive is required for other pole numbers, it should be negotiated with the manufacturer in advance.
- Please refer to the product catalog when ordering, and determine the model specifications and other data required. Whenever possible, choose standard specifications listed in the catalog. The motor model, power, speed regulation, voltage, frequency, noise, and installation type should be specified in the order contract. If the noise level is not specified, level 2 will be supplied.
- If there are special requirements, such as double shaft extension, reverse terminal box position, reverse shaft rotation, tropical or outdoor corrosion protection type, etc., these should be clearly indicated in the contract and discussed with our factory in advance.
