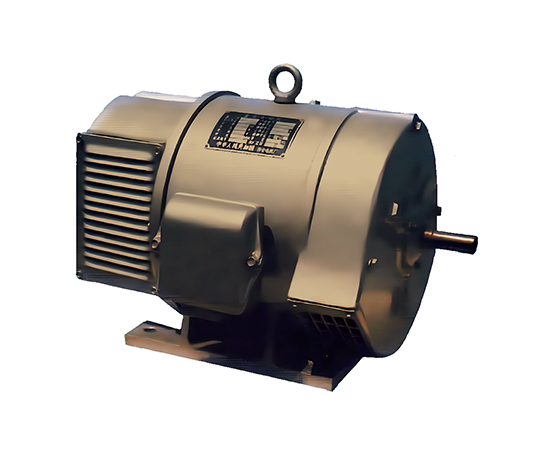

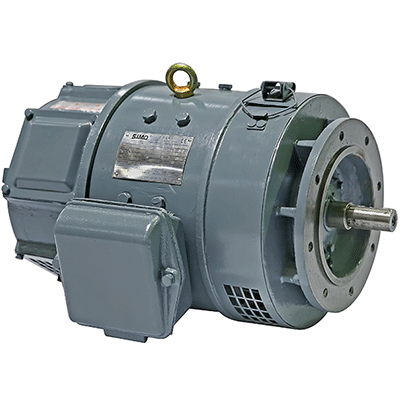

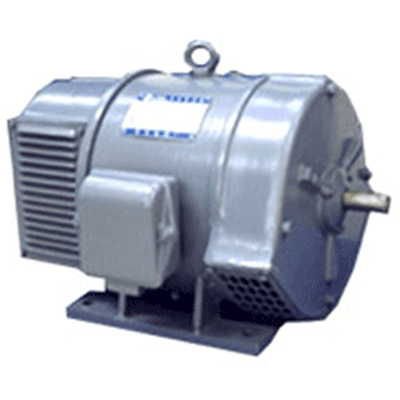

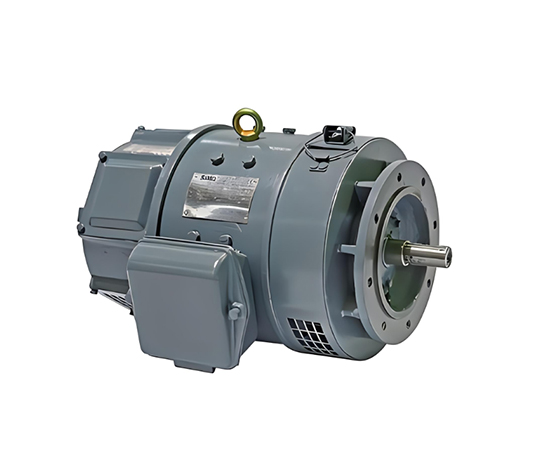

Z2 Series Small DC Motor

Model Description of Xi’an TaiFu Simo Z2 Series DC Motors

Overview of Xi’an TaiFu Simo Z2 Series DC Motors

The letter “Z” represents “direct current” (DC), while the number “2” indicates the second nationwide standardized design. The digits following the hyphen denote the frame size and core length. For example, in the Simo Z2-41 motor, “4” represents the frame size, and “1” indicates a short core. In the Z2-112 motor, “11” represents the frame size, and “2” signifies a long core.

1. The Z2 series small DC motors are designed according to the JB1104-68 standard issued by the Ministry of Machinery Industry of the People’s Republic of China.
2. The Xi’an Simo Z2 series small DC motors are available in 11 different frame sizes, with each size offering two core lengths. The series includes DC motors, DC generators, and DC voltage-regulated generators, suitable for general operating environments. The Z2 series DC motors are primarily used for general drive purposes, generators for general DC power supply, and voltage-regulated generators for battery charging systems.
3. Excitation Methods: The motors use shunt or separately excited excitation with a small stabilizing winding. The generators can use compound or separately excited excitation (for generators with a rated voltage of 230V). Voltage-regulated generators use shunt excitation (without a series winding). The separately excited excitation voltage for the motors can be either 110V or 220V. For motors with a rated voltage of 110V, only a 110V excitation voltage is available.
4. The motors can be driven by a V-belt, spur gear, or flexible coupling, and they should not bear any axial thrust on the motor shaft.
5. Depending on the application requirements, the Xi’an TaiFu Simo Z2 series motors can be manufactured as tropicalized versions (TH) with moisture-proof, mildew-proof, and smoke-proof features for use in humid and hot climates. Additionally, the Z2 series motors from sizes 2 to 11 can be adapted to serve as derivatives for ZYS-A type tachogenerators.
6. The Z2 series motors are self-ventilated as a basic configuration. When reducing the externally applied armature voltage for speed control, the torque decreases proportionally with the speed.
7. The Z2 series motors in sizes 6-11 can also be configured with an external blower, with the blower mounted above the end cap on the shaft extension side.
8. The models of external blowers for the Z2 series motors in sizes 6-11 are listed in Table 1.
9. The Xi’an TaiFu Simo Z2 series motors are small DC motors for general industrial use, suitable for power drives with a constant power speed regulation range not exceeding 2:1 and an overload capacity not exceeding 1.5 times the rated torque. They are applicable in industries such as metal cutting machinery, papermaking, dyeing, printing, and cement production. The generators can be used as power sources, for lighting, or other constant voltage power supply needs.

Quality Assurance of Xi’an Simo Motors

Xi’an Simo Motor Group Co., Ltd. is a large enterprise specializing in the production of medium and large-sized, high and low voltage, AC and DC motors. It is a systemized power system provider, integrating motor design and manufacturing, electrical control, mechanical processing, mold making, casting, and transportation. The company’s production and sales scale ranks among the top in the national motor industry, maintaining rapid growth for seven consecutive years. It was listed among the top 500 Chinese machinery industries in 2004 and ranked 58th in the Chinese electrical industry in 2005. In 1995, it became the first in the industry to obtain ISO9001-1994 quality system certification, and in August 2005, it passed the ISO9001-2000 quality system certification from the China Quality Certification Center (CQC). In May 2006, it obtained ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications. Additionally, it has received CE certification from Europe, UL certification from the United States, and CCC certification, and has been rated as a AAA-grade enterprise in terms of quality and reputation. The leading products have received honors such as “Ministry, Provincial, and Municipal Famous Brand Products” and “Exempted Products of Xi’an City,” as well as the title of “China’s Light of Famous Brand Products.”

To enhance the quality of various electromechanical products and strengthen pre-sales and after-sales services, Simo Motor firmly adheres to the “Quality Assurance Statement” of the eight units of the Machinery Industry Ministry’s Machine Tool Research Institutes. It strictly implements the provisions of the statement and rigorously follows the regulations of the ISO9001:2000 quality management system, ensuring:

1. Strict compliance with national standards, manufacturing and inspecting products according to standard or contract technical requirements, and ensuring that no defective products leave the factory.
2. After assembly, products undergo a 72-hour test run by the assembly staff before final inspection. Strict compliance with relevant standards for test runs and reliability testing is observed to improve product reliability and eliminate early failures.
3. Under normal sales conditions, finished products are delivered on time as promised. Functional components are guaranteed to be delivered within three months, with earlier delivery possible under special circumstances. In case of delays, compensation will be implemented according to the “Nine-Seven New Measures for Quality Improvement.”
4. If a customer encounters quality issues during product use, a response is guaranteed within 24 hours upon notification. On-site service will be initiated within 48 hours if needed, and service personnel will not leave until the issue is resolved.
5. Upon product shipment, complete technical documentation is provided. For any quality-related issues, repairs are fully covered, and if the product fails to meet factory standards after repair, it will be replaced or refunded.
6. All Simo Motor products come with a lifetime warranty at cost.

Ordering Instructions for TaiFu Simo Z2 Series DC Motors

1. Before placing an order, please refer to the product catalog to determine the required model specifications. It is advisable to select standard specifications listed in the catalog. Please specify the motor model, power, voltage, rotation speed, excitation method, excitation voltage, and structural installation form in the order contract.
2. For 2-pole motors of 5.5kW and above, and 4-pole motors of 37kW and above, belt transmission should not be used.
3. Unless otherwise specified, the default parameters for Simo motors are horizontal installation (B3), insulation class B, and protection class IP44.
4. For special requirements, please specify them in the contract and contact our factory in advance.
