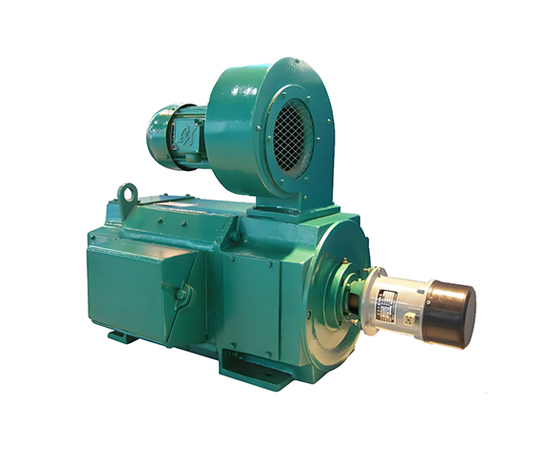

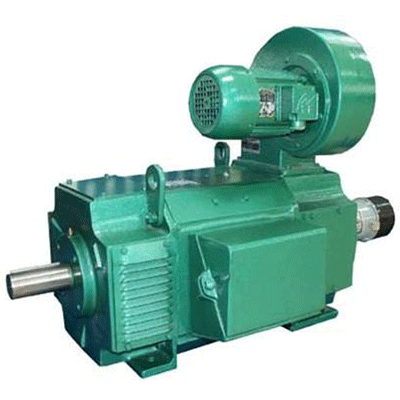

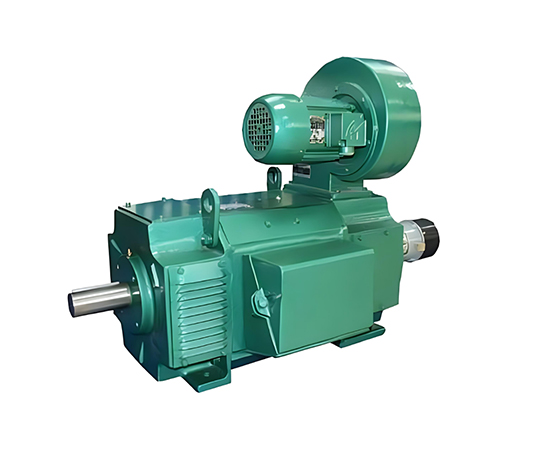

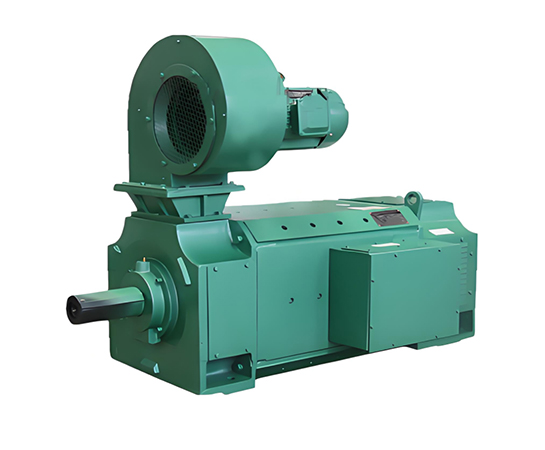

Z4 Series DC Motor

Description and Model Explanation of the Xi’an Taifu Simo Z4 Series DC Motor

      Taking the Z4-280-11B as an example, in the model designation:

• Z stands for DC motor,
• 4 indicates the series,
• 280 represents the motor’s center height (in mm),
• The first “1” denotes the core length number,
• The second “1” signifies the front end cover code, where 1 indicates a short end cover and 2 indicates a long end cover,
• “B” indicates the presence of a compensating winding.

Note: In the Z4-112/2-1 model, the first digit after the slash represents the number of poles, and the second digit represents the core length number.

Overview of the Xi’an Taifu Simo Z4 Series DC Motor

The Z4 series DC motor features a center height ranging from 100 to 355 mm, adhering to the People’s Republic of China’s mechanical industry standard JB/T6316-92 “Z4 Series DC Motor Technical Conditions” for small DC motors. Motors with a center height between 400 to 450 mm are extensions beyond the standard series, while those with a center height between 500 to 710 mm are newly developed medium-sized DC motors. The Simo Z4 series DC motors are widely applicable in various industrial sectors, including metallurgy, metal cutting machines, paper making, textiles, printing, cement, and plastic extrusion machinery.

Compared to the Z2 and Z3 series, the Z4 series offers superior performance, being suitable not only for power supply from DC generators but also from stationary rectifiers. With a low moment of inertia, these motors exhibit excellent dynamic performance and can endure high load variations, making them ideal for systems requiring smooth speed regulation, high efficiency, automatic speed stability, and quick responsiveness, meeting advanced international standards.

These motors are rated for continuous duty at altitudes up to 1000 meters and ambient temperatures not exceeding 40°C. The Simo Z4 series motors use F-class insulation.

The power range of the Xi’an Simo Z4 series DC motors spans from 1.5 kW to 840 kW, with rated speeds available in 3000, 1500, 1000, 750, 600, 500, 400, 300, and 200 r/min. They are shunt-wound, with an excitation voltage of 180V. Other power ratings, armature voltages, speeds, and excitation voltages can be derived based on specific situations and customer needs.

For motors with a rated voltage of 160V, when powered by a single-phase bridge rectifier, an external reactor is usually required. The inductance value of the external reactor is specified on the motor nameplate. Motors with a rated voltage of 440V generally do not require an external reactor.

The performance of this series of motors not only meets the national standard GB/T755 “Basic Technical Requirements for Rotating Electrical Machines” but also largely conforms to the German VDE0530 standard.

Structural Introduction of the Xi’an Taifu Simo Z4 Series DC Motor

Cooling Methods and Installation Types:

• IC06: External ventilation with a built-in blower.
• ICl7: Cooling air inlet via ducts, exhaust via louver vents.
• IC37: Both cooling air inlet and outlet via ducts.
• IC611: Fully enclosed with an air-to-air cooler.
• ICW37A86: Fully enclosed with an air-to-water cooler.

There are various derivative types, such as self-ventilated, with axial fan, enclosed, and air-to-air cooler types. The required cooling airflow, pressure, and fan motor power for each frame size can be found in Table 1. The basic protection level for the entire series of motors is IP21S.

Basic Structure: The Z4 series DC motors feature an octagonal laminated structure, which not only maximizes space utilization but also allows the motor to withstand pulsating currents and rapid load current changes when powered by a stationary rectifier.Typically, the Z4 series DC motors do not include a series winding, making them suitable for automatic control technology requiring forward and reverse rotation. However, they can be manufactured with a series winding if required by the customer. Motors with a center height of 100 to 280 mm do not have compensating windings, but those with a center height of 250 mm or 280 mm can be made with compensating windings as per specific needs. Motors with a center height of 315 to 450 mm are equipped with compensating windings.Motors with a center height of 500 to 710 mm have mounting dimensions and technical requirements that comply with IEC international standards, and the mechanical size tolerances conform to ISO international standards.

机座号	风量(m3/h)	静压(Pa)	风机电动机
			功率(kW)	频率(Hz)	三相电压(V)
Z4-100	160	200	0.04	50	380
Z4-112/2	220	300	0.06
Z4-112/4-1	220	300	0.06
Z4-112/4-2	360	450	0.18
Z4-132	360	450	0.18
Z4-160	790	600	0.37
Z4-180	1600	950	1.1
Z4-200	1600	950	1.1
Z4-225	3000	1400	3.0
Z4-250	3000	1400	3.0
Z4-280	4000	1600	4.0
Z4-315	5200	1600	5.5
Z4-355	5200	1600	5.5
Z4-400	7200	1800	5.5
Z4-450	9000	1800	7.5

      The installation form of the Z4 series Simo motors complies with GB/T997 “Motor Structure Installation Forms and Codes,” and all installation dimensions, except for the foot hole axial distance (B dimension), conform to IEC standards.The motor terminal box is located on the right side of the frame when viewed from the drive end (non-commutator end), which is known as the positive box. If the customer requires the terminal box to be on the opposite side, it should be specified in the order as a reverse box. The standard output shaft configuration is single-ended, with the output shaft on the left side when facing the terminal box (positive box). Dual-ended output shafts are also available upon request. The basic rotation direction of the shaft is counterclockwise when viewed from the commutator end. The motor is coupled to the drive using a flexible coupling but can also be used for transmission methods involving a certain radial force (belt or gear transmission).

Accessories for Xi’an Taifu Simo Z4 Series DC Motors

According to customer needs, the motor can be designed to accommodate additional accessories such as tachogenerators, pulse generators, centrifugal switches, and brakes. Specific requirements can be discussed with the manufacturer.

Note: The specifications, power, and field weakening speed range in the technical data sheet are for reference only. Data may change as new technologies and materials are adopted.

Quality Assurance for Xi’an Simo Motors

Xi’an Simo Motor (Group) Co., Ltd. is a large-scale enterprise specializing in the production of medium and large-sized, high and low voltage, AC and DC motors. It integrates motor design and manufacturing, electrical control, mechanical processing, mold making, casting, transportation, and other services into a comprehensive power system provider. The company ranks among the top in the national motor industry in terms of production and sales, maintaining rapid growth for seven consecutive years. It was listed among the top 500 machinery companies in China in 2004 and ranked 58th in the Chinese electrical industry in 2005. In 1995, it was the first in the industry to obtain ISO9001-1994 quality system certification. In August 2005, it passed the ISO9001-2000 quality system certification by the China Quality Certification Center (CQC). In May 2006, it passed the ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications, as well as European “CE,” American “UL,” and China’s compulsory “CCC” certifications. The company has been awarded the AAA credit rating. Its main products have won honors such as “Ministry, Provincial, and Municipal Famous Brand Products,” “Xi’an City Exempted Products,” and “China Light of Brand Products.”

To enhance the quality of various electromechanical products and strengthen pre-sales and after-sales services, ensuring customer satisfaction, Simo Motor strictly adheres to the “Quality Assurance Statement” of the eight research and design institutes of the Machine Tool and Tool Industry under the Ministry of Machinery Industry. It rigorously implements all provisions of the statement and strictly follows the rules of the ISO9001:2000 quality management system, ensuring:

1. Strict compliance with relevant national standards and manufacturing, inspection of products according to contract technical requirements. Products will not leave the factory if they fail to meet quality standards.
2. Product measurement, assembly, and joint debugging will only be completed after a 72-hour trial run by the assembly personnel. Tests such as reliability and operational tests will be strictly carried out according to relevant standards to improve the reliability of new products and eliminate early failures.
3. Under normal sales conditions, the above products will be delivered on time. Functional components are guaranteed to be delivered within three months, with earlier delivery possible in special cases. If a delay occurs, compensation will be implemented according to the “97” new quality improvement measures.
4. If any quality issues arise during the product’s use, the company will respond within 24 hours of receiving the customer’s notice. If on-site service is required, it will be initiated within 48 hours, and service personnel will not leave until the fault is resolved.
5. When products leave the factory, all technical documents will be complete. Any quality-related issues will be covered by a comprehensive warranty, and products that do not meet the factory standards will be replaced or refunded.
6. Simo Motor products are sold with a lifetime cost-free warranty.

Ordering Instructions for the Xi’an Taifu Simo Z4 Series DC Motor

1. Before placing an order, please refer to the Xi’an Simo Motor product catalog to determine the required model specifications and other data. Please specify the motor model, power, voltage, speed, excitation method, excitation voltage, and structural installation form in the order contract, such as Z4-180-31 37kW 400V 1000r/min shunt-excited 180V, horizontal with foot or IMB3.
2. If there are special requirements for the product, such as dual shaft extension, reverse terminal box position, or reverse shaft rotation, these must be clearly stated in the contract.
3. If the selected specifications are not in the product catalog, please provide detailed performance specifications and ordering requirements to allow Simo Motor to design and manufacture the product according to the required parameters.

Note:

Due to ongoing technological advancements and improvements, some information in this document may change. Please contact the company for updated details.

For further details on motors that meet specific customer needs, kindly consult the technical department of Xi’an Simo Motor or refer to the company’s website and product catalog.
