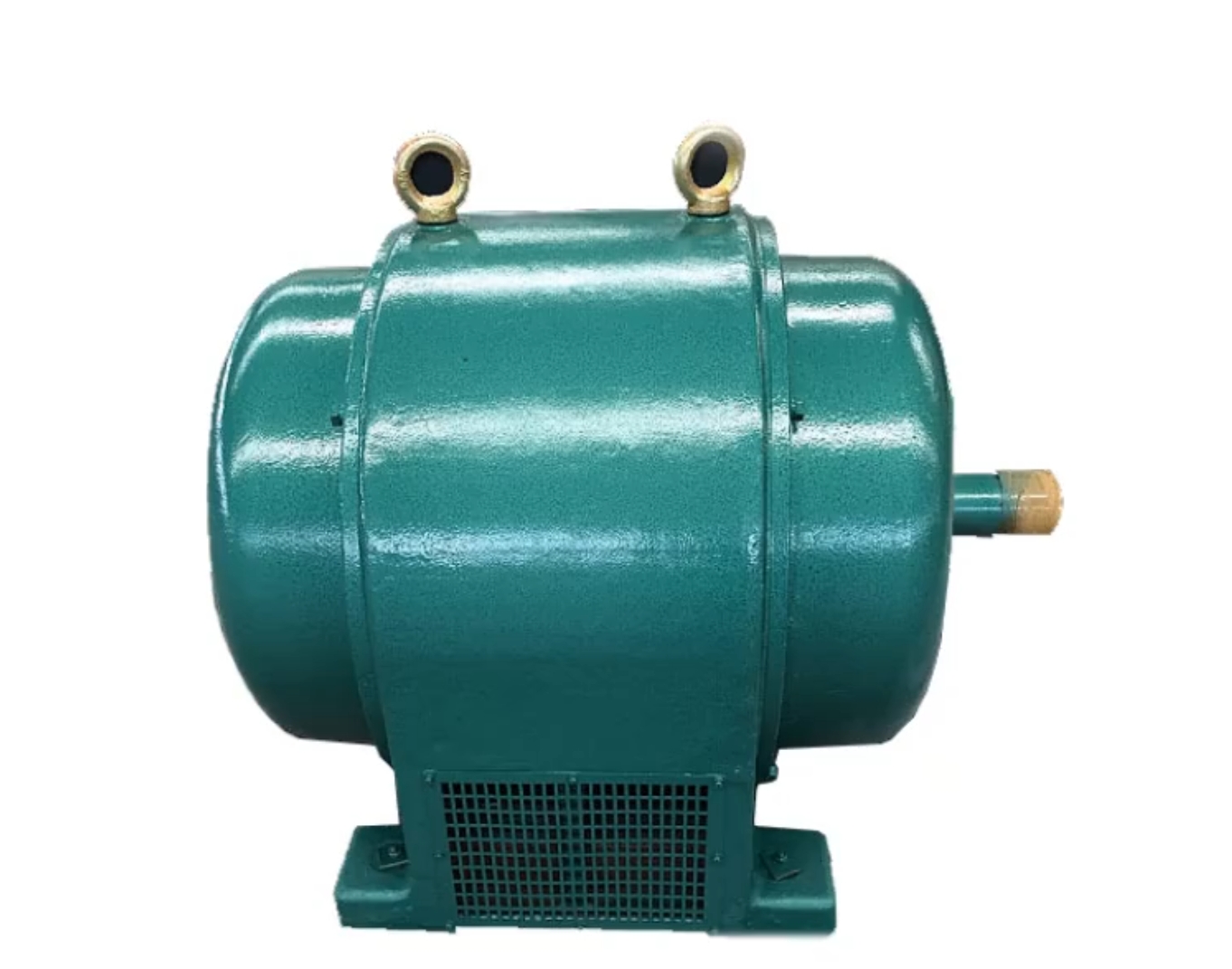

Xi’an Taifu Simo JS/JR Series Three-Phase Asynchronous Motors Model Explanation
For the Xi’an Taifu Simo JS/JR series three-phase asynchronous motors, the model JS115-6 represents a squirrel-cage rotor asynchronous motor. The number 11 indicates the frame size, the number 5 denotes the core length, and it has 6 poles. Similarly, the model JR115-6 represents a wound rotor asynchronous motor, with the same frame size, core length, and number of poles.
The JR series motors come in two versions: with and without a brush-lifting and short-circuit device.
Overview of Xi’an Taifu Simo JS/JR Series Three-Phase Asynchronous Motors
The J series medium-sized motors can drive various machines, such as fans, compressors, pumps, crushers, ball mills, planers, transportation machinery, and other equipment. They are suitable for use in coal mines, the machinery industry, power plants, and various industrial and mining enterprises.
- The JS series motors are squirrel-cage rotor three-phase asynchronous motors.
- The JR series motors are wound rotor three-phase asynchronous motors.
- The JS series motors conform to the technical conditions specified in the Ministry Standard JB563-64.
- The JR series motors conform to the technical conditions specified in the Ministry Standard JB564-64.
The Xi’an Taifu Simo JS/JR series three-phase asynchronous motors are of the protected type. They can also be made in a duct-ventilated version according to user requirements. Protected-type motors should be installed at an altitude not exceeding 1 km, with ambient air temperatures not higher than +40°C and not lower than 0°C. The air should be clean and free from corrosive gases like acids and alkalis, and the motor should not operate in environments with explosive gases or high dust levels.
If the ambient air temperature exceeds the specified range or the air is not clean, a duct-ventilated design should be used. In this case, the cooling air entering the motor from both ends should be between 0°C and 40°C, and the air pressure inside the ducts and motor should be higher than the surrounding air pressure. If necessary, blowers, dust filters, and other devices should be added.
The Xi’an Taifu Simo JS series squirrel-cage motors allow for full-voltage direct starting. The initial starting torque and current values are proportional to the rated values, as shown in Table 3. If the power grid cannot support full-voltage direct starting, reduced-voltage starting can be used, but the starting torque will decrease in proportion to the square of the starting voltage.
For the JR series motors, a starting resistor must be connected in the rotor circuit during startup. Direct short-circuit starting of the rotor windings is not allowed.
Quality Assurance of Xi’an Simo Motors
Xi’an Simo Motor Co., Ltd. is a large enterprise specializing in the production of medium and large-sized, high and low-voltage AC and DC motors. It integrates motor design and manufacturing, electrical control, mechanical processing, mold making, casting, and transportation into a systematic power system provider. The company ranks among the top in the national motor industry in terms of production and sales scale, and has maintained rapid growth for seven consecutive years. It was listed among the top 500 enterprises in China’s machinery industry in 2004 and ranked 58th in China’s electrical industry in 2005. The company obtained ISO9001-1994 quality system certification in 1995 and passed the ISO9001-2000 quality system certification by the China Quality Certification Center (CQC) in August 2005. In May 2006, it passed the ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications. The company also obtained the European “CE,” American “UL,” and national compulsory “CCC” certifications and has been rated as an AAA credit enterprise. The leading products have won titles such as “Ministry, Provincial, and Municipal Famous Brand Products,” “Xi’an Exempt Products,” and “Famous Brand Products of the Light of China.”
To improve the quality of various electromechanical products and strengthen pre-sales and after-sales service, Simo Motor strictly adheres to the “Quality Assurance Statement” issued by eight units of the Machine Tool Industry Research and Design Institute of the Ministry of Machinery Industry. The company conscientiously implements the provisions of the statement and strictly follows the rules and regulations of the ISO9001:2000 quality management system to ensure the following:
- Strict implementation of national standards, manufacturing, and inspection according to standards and contract technical requirements. Non-conforming products will not leave the factory.
- After the final assembly and online debugging of the products, the assembly personnel will conduct a 72-hour operation test before the products are inspected. The products will undergo rigorous performance and reliability tests in accordance with relevant standards to improve the reliability of new products and eliminate early failures.
- Under normal sales conditions, the products will be delivered on time. Functional components will be delivered within three months, and special situations may allow for earlier delivery. In case of delays, compensation will be provided according to the “Quality Improvement ’97 New Measures.”
- If a quality problem is found during the customer’s use of the product, a response will be provided within 24 hours of receiving the customer’s notice. If on-site service is required, it will be initiated within 48 hours, and the repair personnel will not leave until the issue is resolved.
- Complete technical documents will accompany the product upon delivery. Any quality issues with the product will be covered by a three-package repair service. If the product cannot meet the factory standards after repair, it will be replaced or refunded.
- Once sold, Simo Motor products come with a lifetime cost-free warranty.
Ordering Information for Xi’an Taifu Simo JS/JR Series Three-Phase Asynchronous Motors
The Xi’an Taifu Simo JS/JR series three-phase asynchronous motors can drive a wide range of machinery, such as fans, compressors, pumps, crushers, ball mills, planers, transportation equipment, and other devices. They are suitable for use as prime movers in coal mines, the machinery industry, power plants, and various industrial and mining enterprises. …Before placing an order, please refer to the Simo Motor product catalog to determine the model specifications and technical data required. If the required type and specifications differ from those in the catalog, please contact our factory. If there are special requirements, please specify them in advance, and after mutual agreement, sign a contract or technical agreement.- When ordering, please specify the Simo Motor model, power, voltage, speed, duty cycle, structure and installation type, excitation method, excitation voltage, number of output shafts, position of the terminal box, rotation direction, and the required accessories and spare parts.
- If the motor is to be exported or used in humid tropical regions, please specify this in the contract.
