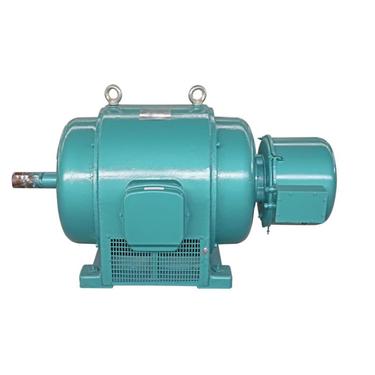

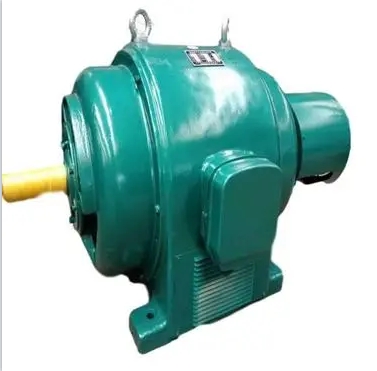

Model Designation for Xi’an Taifu Simo JS/JR Series Three-Phase Asynchronous Motors
The model “JS115-6” in the Xi’an Taifu Simo JS/JR series three-phase asynchronous motors represents a squirrel-cage rotor asynchronous motor. It has a frame size of 11, a core length of 5, and 6 poles.
Similarly, “JR115-6” represents a wound rotor asynchronous motor with the same frame size and core length but also has 6 poles.
The JR series motors are further categorized into two types: those with brush lifting and short-circuit devices, and those without these devices.
Overview of Xi’an Taifu Simo JS/JR Series Three-Phase Asynchronous Motors
The J series medium-sized motors can drive various types of machinery, including fans, compressors, pumps, crushers, ball mills, planers, transportation equipment, and other devices. They are suitable as prime movers in coal mines, the machinery industry, power plants, and various industrial and mining enterprises.
- The JS series are squirrel-cage rotor three-phase asynchronous motors.
- The JR series are wound rotor three-phase asynchronous motors.
- The JS series motors comply with the technical conditions specified in the JB563-64 standard.
- The JR series motors comply with the technical conditions specified in the JB564-64 standard.
The Xi’an Taifu Simo JS/JR series three-phase asynchronous motors are of a protected design. They can also be made in a duct ventilation style upon customer request.
Protected motors should be installed at altitudes not exceeding 1 km, with ambient air temperatures not higher than +40°C and not lower than 0°C, in clean air free from corrosive gases such as acids or alkalis, and in indoor environments. These motors are not permitted to operate in environments containing explosive gases or high dust levels.
When the ambient air temperature exceeds the above requirements or is not clean, a duct ventilation system should be used. In this case, the cooling air entering both ends of the motor should be between 0°C and 40°C, and the air pressure inside the duct and motor must be higher than the surrounding air pressure. If necessary, blowers, dust filters, and other equipment should be added.
The Xi’an Taifu Simo JS series squirrel-cage motors allow full voltage direct starting. The initial starting torque and initial starting current ratios to the rated values are shown in Table 3. If the customer’s power grid does not permit full voltage direct starting, reduced voltage starting can be used, but the starting torque will decrease in proportion to the square of the starting voltage.
For JR series motors, a starting resistor must be connected in the rotor circuit before starting. Direct short-circuit starting of the rotor winding is not allowed.
Quality Assurance of Xi’an Simo Motors
Xi’an Simo Motor (Group) Co., Ltd. is a large enterprise specializing in the production of medium and large-sized, high and low-voltage, AC and DC motors. The company integrates motor design and manufacturing, electrical control, mechanical processing, mold-making, casting, and transportation into a systematic power system provider. Its production and sales scale ranks among the top in the national motor industry, maintaining rapid growth for seven consecutive years. In 2004, it was listed among the top 500 Chinese machinery industry companies, and in 2005, it ranked 58th in the Chinese electrical industry. In 1995, it became the first in the industry to obtain ISO9001-1994 quality system certification and passed the ISO9001-2000 quality system certification from the China Quality Certification Center (CQC) in August 2005. In May 2006, it passed ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications, and also received European “CE,” American “UL,” and national “CCC” safety certification, earning a AAA credit rating. The company’s leading products have been awarded titles such as “Ministry, Province, and City Famous Brand Products” and “Xi’an City Exempted Products,” among others.
To improve the quality of various electromechanical products and enhance pre-sales and after-sales service, ensuring customer satisfaction, Simo Motor strictly implements the “Quality Assurance Statement” issued by eight research and design institutes in the machine tool and tool industry of the Ministry of Machinery Industry. The company rigorously follows all provisions outlined in the statement and adheres strictly to the rules and regulations of the ISO9001:2000 quality management system, ensuring the following commitments:
- Strictly comply with relevant national standards and manufacture and inspect products according to standard or contract technical requirements. Non-conforming products will not leave the factory.
- After the final assembly and on-line debugging of product assemblies, a 72-hour operational test will be conducted before inspection. Rigorous type tests and reliability tests will be conducted according to relevant standards to improve the reliability of new products and eliminate early failures.
- Under normal sales conditions, products will be delivered on time. Functional components are guaranteed to be delivered within three months, with early delivery in special cases. In case of delays, compensation will be provided according to the “97 New Measures for Quality Improvement.”
- If quality issues are found during product use, a response will be provided within 24 hours after receiving customer notification. On-site service will be initiated within 48 hours, and repair personnel will not leave until the fault is resolved.
- Products leaving the factory will have complete technical documentation. Any quality issues will be covered by a full three-year warranty. If the product does not meet factory standards after repair, it will be returned or exchanged.
- Simo Motor products are sold with a lifetime warranty for maintenance at cost.
Order Information for Xi’an Taifu Simo JS/JR Series Three-Phase Asynchronous Motors
- Before placing an order, please refer to the Simo Motor product catalog to confirm the model specifications and other technical data required. If there are discrepancies between the required products and those in the catalog, please contact our factory. If there are special requirements, please provide specific details, and after mutual agreement, sign a contract or technical agreement.
- When placing an order, please specify the Simo Motor model, power, voltage, speed, duty cycle, structural installation type, excitation method, excitation voltage, number of shaft extensions, terminal box position, rotation direction, and the required accessories, spare parts, and their quantities.
- If the product is intended for export or requires tropical humidity protection, please specify this in the contract.
