Technical Features
Frame
H355 – H630
Power
185kw – 3550kw
Voltage
3 kV, 6 kV, 6.6 kV, 10kV, etc.
Frequency
50Hz, 60Hz or variable frequency speed regulation
Poles
2P, 4P, 6P, 8P, 10P, 12P, 16P
Standard
JB/T
Energy Efficiency Level Grade 2 Cooling Method IC01, IC06
Protection Level
IP23
Installation Method
IMB3, IMB35, V15, etc.

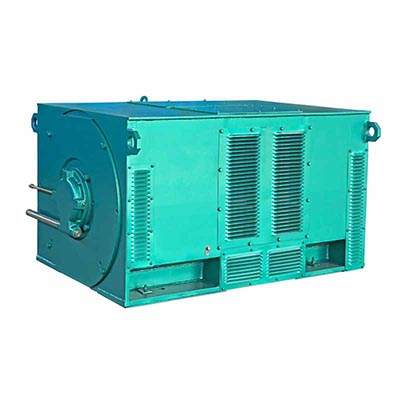

YX Series High-Efficiency High-Voltage Three-Phase Asynchronous Motors
Our company has a professional R & D team and can be specially customized according to the actual working conditions of users to meet different needs of customers.
01
Technical Advantages
This series of motors is a new generation of series products developed based on the company’s long-term and stable design and manufacturing experience of high-voltage three-phase asynchronous motor series combined with the latest international standards. It adopts new technologies, new processes, sophisticated material selection, and excellent manufacturing. The efficiency values of the motors all reach the limited value of energy efficiency level 2, which can greatly improve the operating efficiency of customers.
02
Operating Conditions
Ambient air temperature: -15℃ to +40℃; Altitude: ≤1KM; Average monthly ambient air humidity (when the temperature is 25℃): ≤90%
03
Product Features
It has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, and convenient installation and maintenance.
04
Wide Application
It is mainly used to drive various different machinery. Such as fans, compressors, water pumps, crushers, cutting machines and other equipment, and can be used as prime movers in coal mines, machinery industry, power plants and various industrial and mining enterprises.
